- Place of Origin:CN;GUA
- Brand Name:COVNA solenoid valve
- Model Number:HKFP solenoid valve
- Power:Solenoid
- Application:General
- Port Size:1/4",3/8",1/2",3/4",1"
- Structure:Plug
- Standard or Nonstandard:Standard
- Temperature of Media:Normal Temperature
- Material:PTFE
- Pressure:normal pressures
- Media:sea water,low acid fluid

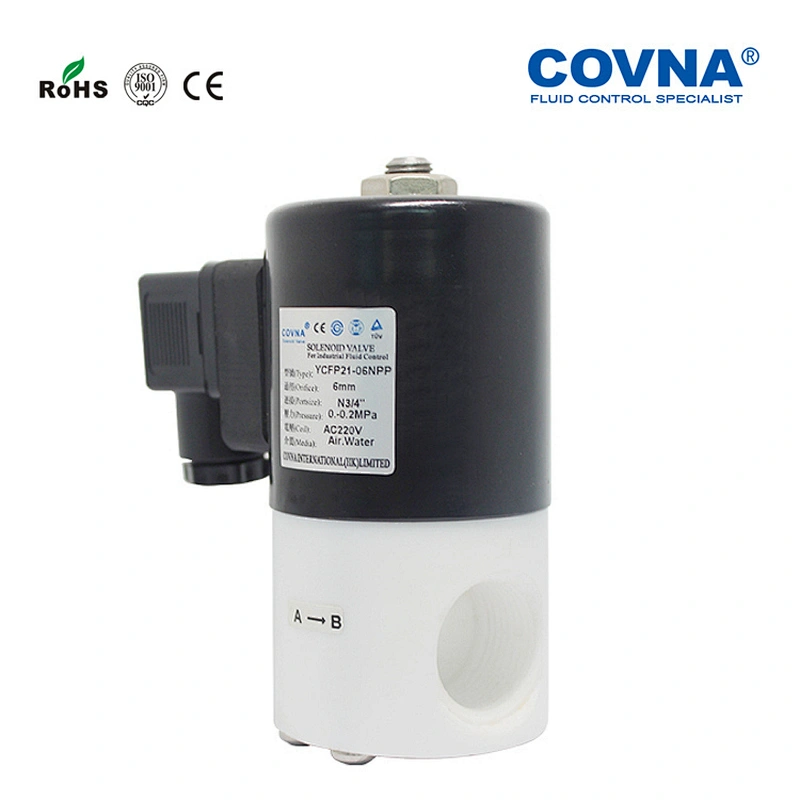

PTFE solenoid valve 12v dc for chemical strong acid, alkali :

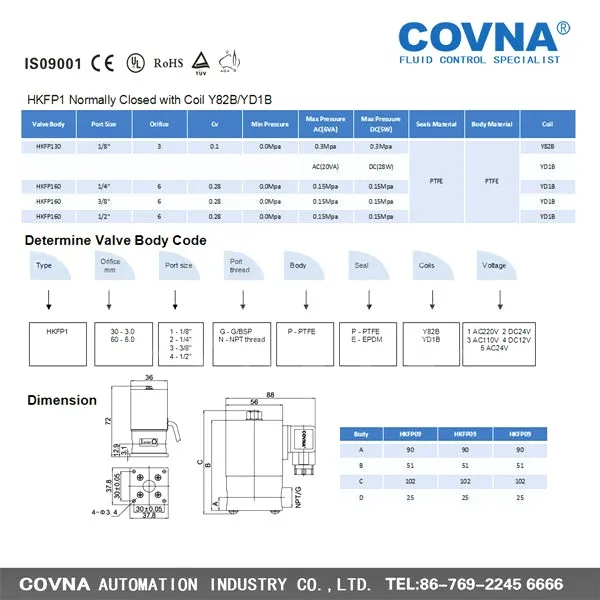

| HKPF1/HKFP2 Series Anti-corrosive solenoid valve normally closed | ||||||

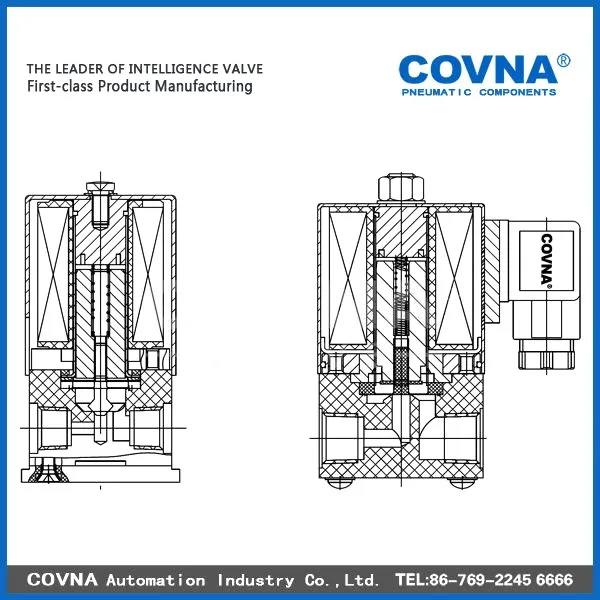

| Characteristic: | With isolated diaphragm construction to rot-proof | |||||
| PTFE body for coorosion resistant | ||||||
| Medium | Corrosive fluid and gas,acid,alkali,etc. | |||||
| Temperature | PTFE seal:-20 to 200℃ | |||||
| Pressure | 0.0 to 0.15Mpa NC | |||||
| Port size | 1/8",1/4",3/8",1/2" | |||||
| Port Thead | BSPP,BSPT,NPT,Flange | |||||
| Orifice(mm) | 3,8mm | |||||
| Voltage | DC-12V, 24V | |||||
| AC-24V,12V,240V/60Hz; 110V, 220V/50Hz | ||||||
| Coil | Y82B, 35VA(AC), 30W(DC), 100%ED | |||||
| YD1B, 8VA(AC), 8W(DC), 100%ED | ||||||
| Material | Body - PTFE | |||||
| Seal - PTFE | ||||||
| Armature tube:Stainless steel 304 | ||||||
| Plunger:Stainless steel 430F | ||||||
| Stop:SS403F | ||||||
| Springs:SS304 | ||||||
| Shading rings:Stainless steel 304 | ||||||
Shipping Terms of Anti-corrosive solenoid valve:
1.We ship most of orders within 1-3 business day after receiving your payment(for sample).
2.We will post tracking number by e-mail after processing your order.
3. We provide combine shipping if you have multiple orders. In order to get combine shipping price, please send us a combine shipping request.
Please follow these steps for combined shipping of Anti-corrosive solenoid valve:
First send us a message saying you would like combined shipping,then we will calculate shipping and handling.We send you an invoice with the total and please pay invoice we will ship your items.
Q: How much is our minimum order quantity?
A: Our minimun quantity is 1 Piece.
Q: What's your business scope?
A: Our business scope is air cylinder,air source treatment ,air solenoid valve ,motorize valve ,
pneumatic valve ,quick fitting,etc.
Q: What's your delivery date?
A: It depends on the number of orders. Delivery date is 7-30 days. If you need emergency products,
we can speed up the production of the first arrangement.
Q: What is the price of the product?
A: Our prices are based on the size and type of material, if you can give me the information,
then we can give you an estimated price is for reference only. We can do any size and any color.
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials processing. Valve/ solenoid valve /electric
valve /pneumatic valve and air cylinder products and so on.
Q: How many years do you warrant?
A: 18 months warranty.
Q:How many years have you done valves,cylinders?
A: More than 13 years.
