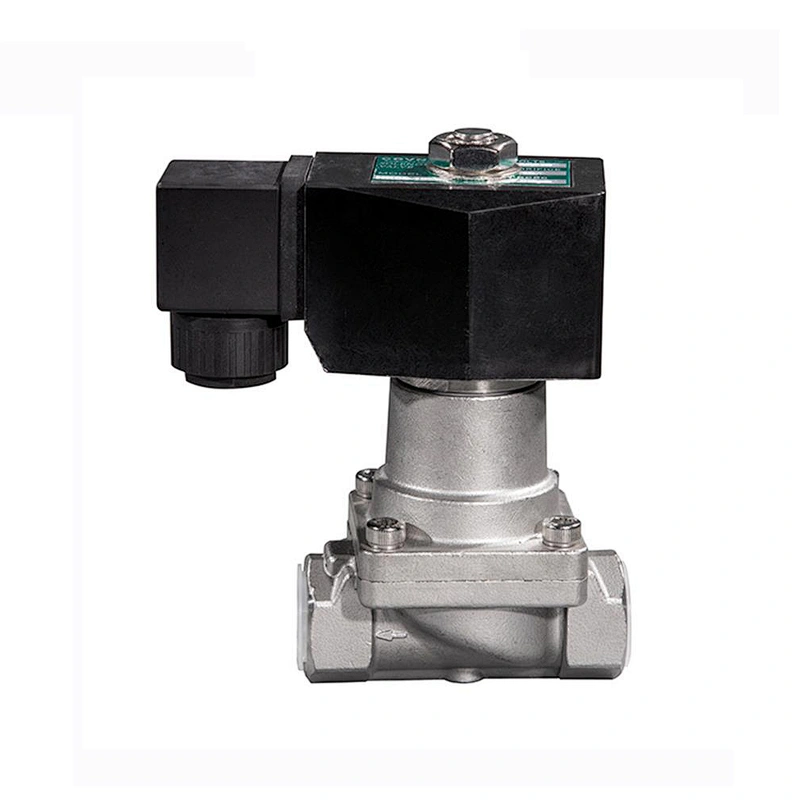

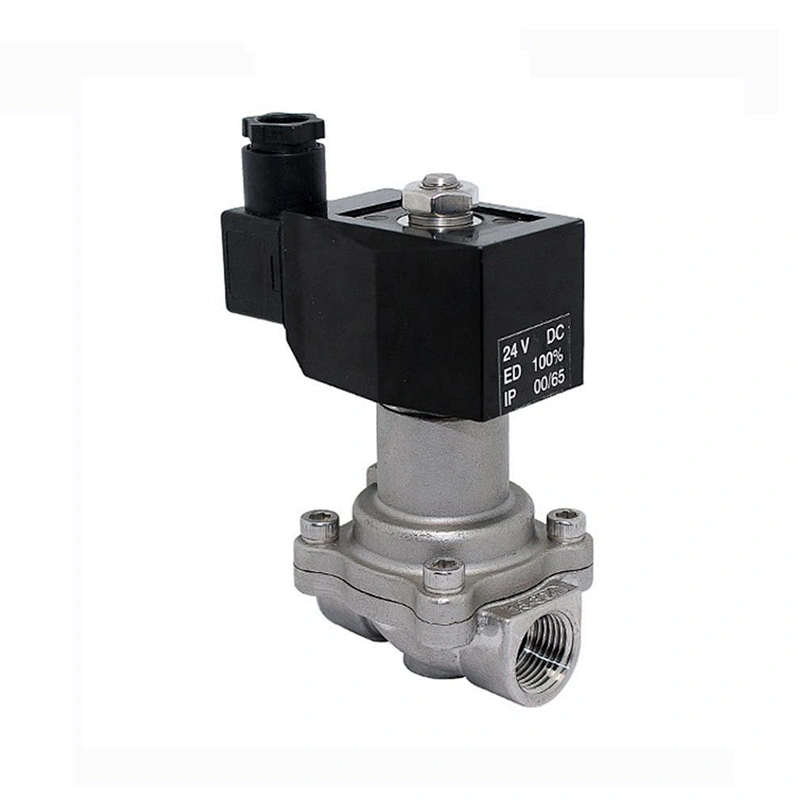

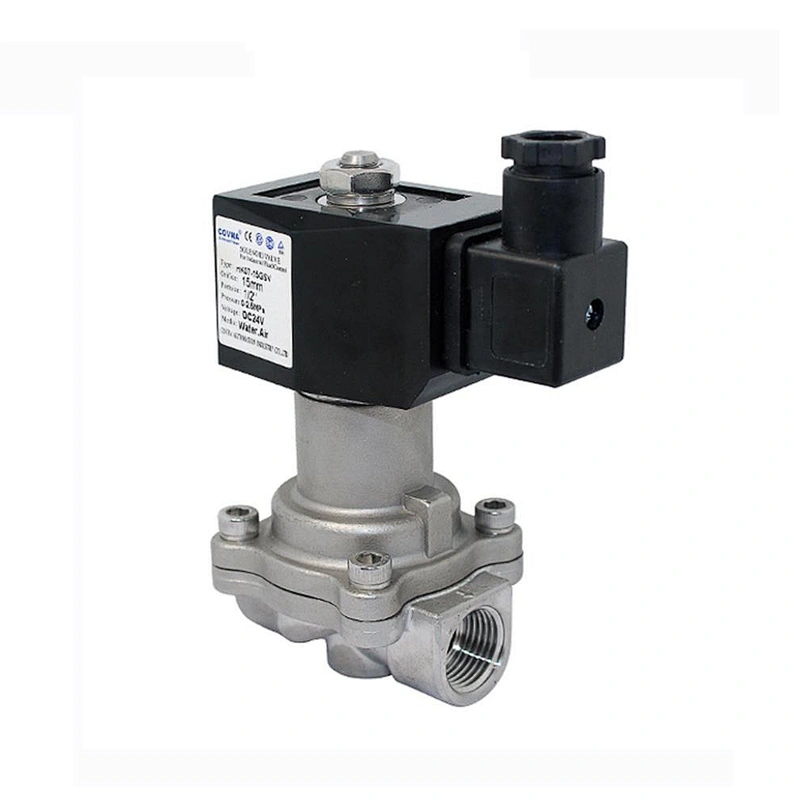

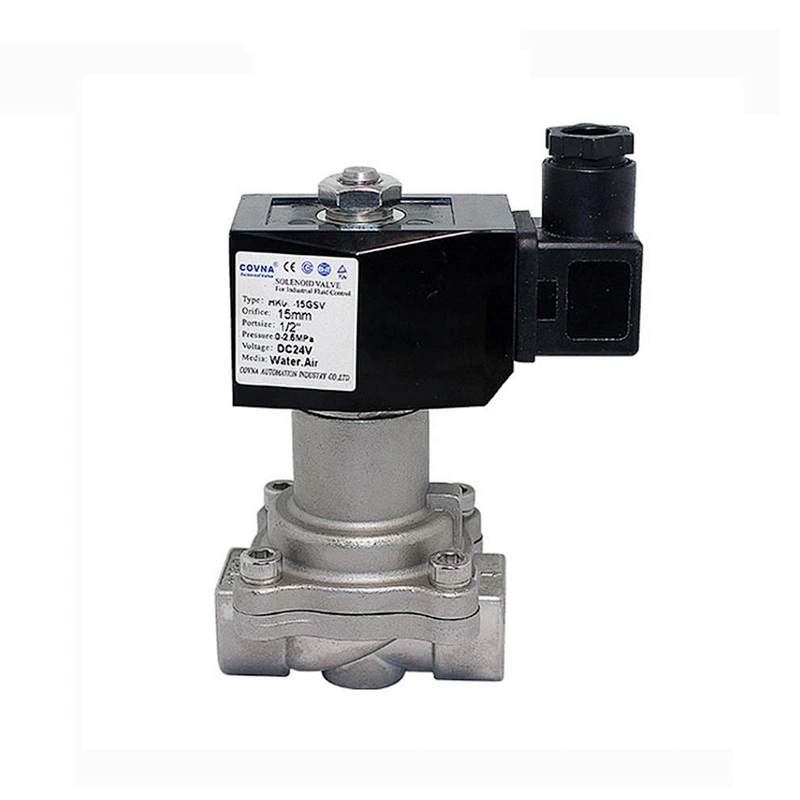

COVNA DN15 1/2 inch Two Position Two Way 24VDC Normally Closed Stainless Steel Steam Solenoid Valve

COVNA DN15 1/2 inch Two Position Two Way 24VDC Normally Closed Stainless Steel Steam Solenoid Valve

Model NO.: HK08 Steam Solenoid Valve
Price:: USD 9.99-29.99 / piece
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 1000 piece / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Material:Stainless Steel
Temperature of Media:High Temperature
Temperature of Media:Low Temperature
Temperature of Media:Medium Temperature
Temperature of Media:Normal Temperature
Pressure:Low Pressure
Power:Solenoid
Structure:Pilot
Media:Steam
Brand Name:COVNA
Model Number:HK08 Steam Solenoid Valve
Port Size:1/2 inch Solenoid Valve

Specifications

HK02-S Small Size Stainless Steel Solenoid Valve

2W21 Brass Diaphragm Electric Solenoid Valve

HK11-2 Auto-Drain Brass Water Solenoid Valve with Timer

2W21 Stainless Steel Diaphragm Solenoid Valve

HKKB Ultra-High Pressure Stainless Steel Solenoid Valve

HK0018 Ultra-High Temperature Sanitary Solenoid Valve

In Stock, Start Order Now!

In Stock, Start Order Now!

Item	COVNA DN15 1/2 inch Two Position Two Way 24VDC Stainless Steel Steam Solenoid Valve
Size Range	DN15, 1/2"
Operating Pressure	0.03 to 1.0MPa (43.5 to 150PSI)
Number of Ways	2/2 Valve, Two Ways Two Positions
Valve Operation Type	Normally Closed (NC), Open When Energized
Body Material	Stainless Steel
Sealing Material	FKM (VITON), PTFE
End Connection	Female Threaded
Coil Voltage	24VDC
Applicable Media	Control of Oil, Air, Gas, Water, Liquid, Steam
Temp. of Media	Range from -10 to +120°C (14 to 248°F) with FKM Sealing
Ambient Temp.	Range from -20 to +60°C (-4 to 140°F)
Protection Class	IP67, Explosion-protected Construction are Available
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

In Stock, Start Order Now!

In Stock, Start Order Now!

Production Flow

Raw Material Check

Employing the best raw material, carefully selected.

Solenoid Coil Winding

Low temperature rise solenoid coil.

Diaphragm Lasering

Laser cutting.

CNC Machining

Advanced CNC machine from German.

Semi-finished Products and Components

Partly finished products, waiting for further processing.

Solenoid Valve Assembly

Assembled by qualified engineers.

During Production Check

Identify defects and fix them.

Final Quality Control

100% tested before shipping.
