- Place of Origin:CN;GUA
- Application:General
- Temperature of Media:Normal Temperature
- Power:Electric
- Media:Water
- Structure:Ball
- Brand Name:COVNA
- Model Number:HK60-Q-T
- Port Size:1/2"~2"
Item | 2 inch 3 Way L Port 12V Stainless Steel Motorized Ball Valve | ||||
Size Range | 1/4"~4", DN08~DN100 | ||||
Operating Pressure | 1.0MPa~6.4MPa | ||||
Control Mode | On Off Type / Modulating Type | ||||
Optional Voltage | DC24V (±10%), AC110-220V, 50/60Hz | ||||
Body Material | Stainless Steel, WCB, CF8, CF8M, CF3M | ||||
Core Material | Stainless Steel | ||||
Sealing Material | PTFE: -30°C~180°C, PPL: -30°C~150°C | ||||
Structure | 3 Way L Port, T Port are Available | ||||
Threaded Connection | G, NPT, BSP, BSPP | ||||
Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam | ||||
Optional Accessories | Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke | ||||
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | ||||

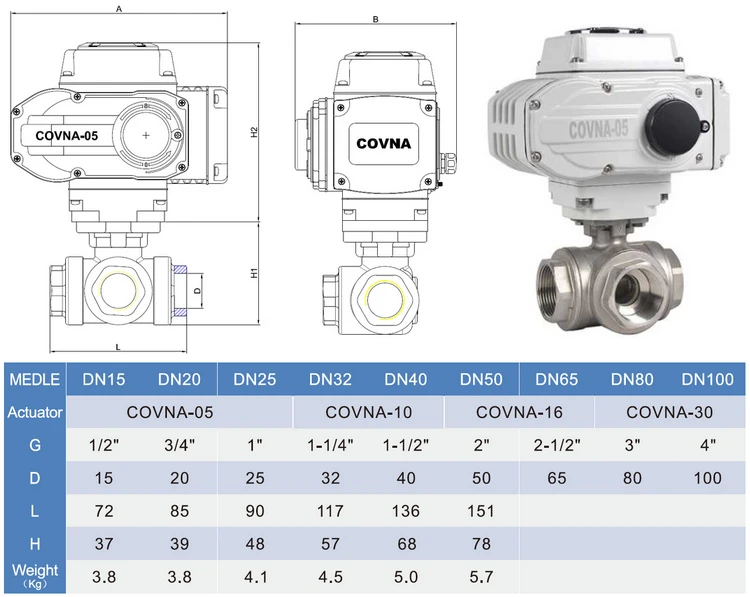

Dimension:
Flow Diagram | ||||||
Wiring Diagram | ||||||
ON/OFF Type with Passive Contact Signal Feedback
AC Voltage
DC12V/DC24V Direct ON-OFF Type
DC Voltage
Regulation Type with Servo Control Module
AC Voltage / DC Voltage
Other AC/DC voltage can also be customized!
COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
Outward Bound Activity
Q1. Is the sample order acceptable?
A: Yes, of course.
Q2. What is your MOQ?
A: 1 PCS.
Q3. What is the delivery time?
A: It is about 5-7 days after we receive the payment.
Q4. How to make the payment?
A: We accept T/T, Paypal, Ali Trade Assurance.
Q5. Do you have products in stock?
Yes, some stock can be shipped out within 3 days.
Q6. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q7. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
