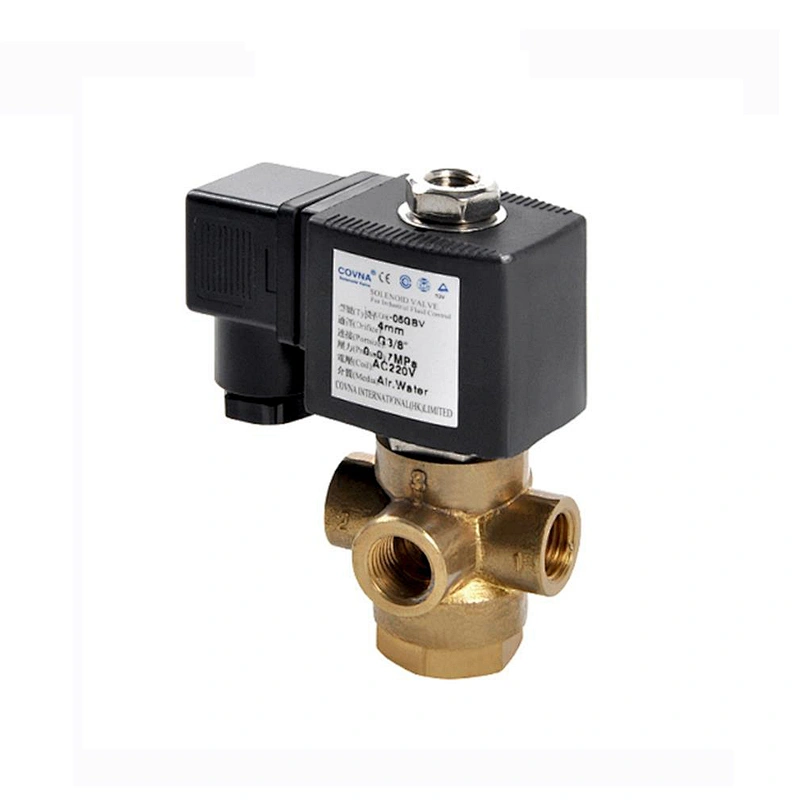

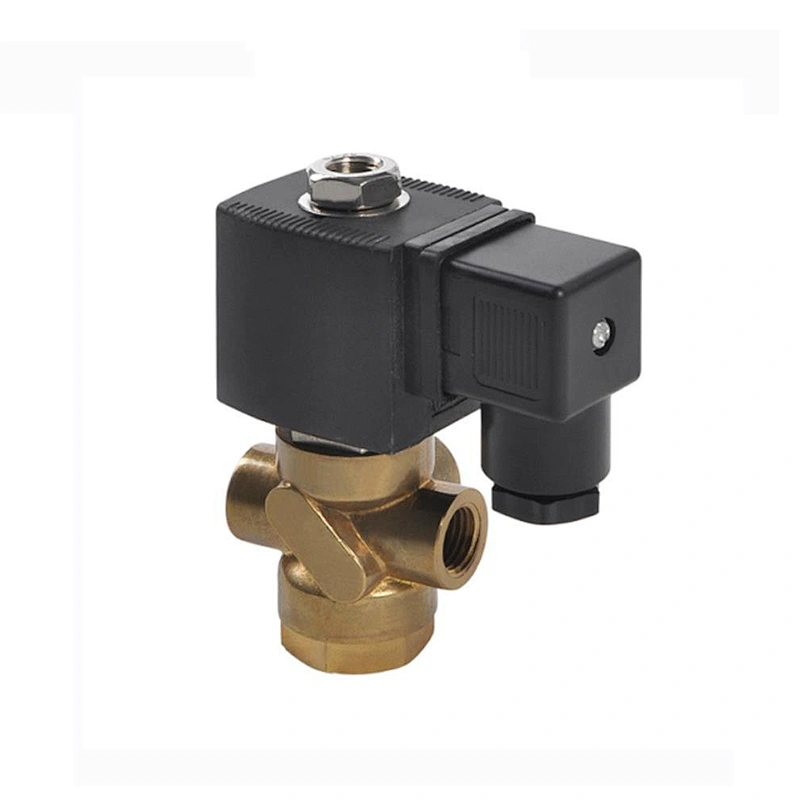

COVNA DN8 1/4 inch Three Way 12V DC Universal Operation Direct Acting Brass Solenoid Water Valve

COVNA DN8 1/4 inch Three Way 12V DC Universal Operation Direct Acting Brass Solenoid Water Valve

Model NO.: VX31 Solenoid Valve
Price:: USD 40.00-50.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 10000 set / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Material:Brass
Temperature of Media:Low Temperature
Temperature of Media:Medium Temperature
Temperature of Media:Normal Temperature
Pressure:Low Pressure
Power:Solenoid
Media:Water
Structure:Direct Acting Solenoid Valve
Brand Name:COVNA
Model Number:VX31 Solenoid Valve
Port Size:1/4 inch Solenoid Valve

Specifications

Item	COVNA DN8 1/4 inch Three Way 12V DC Universal Operation Direct Acting Brass Solenoid Water Valve
Size Range	1/4", DN08
Medium	Water, Air, Steam, Gas, Oil, etc
Temperature	VITON: -10℃~150℃, NBR: -10℃~80℃, EPDM: -10℃~120℃
Pressure	0~1.5MPa
Port Thread	NPT, BSPP, BSP
Voltage	DC-12V, 24V AC-24V, 120V, 240V/60Hz; 110V, 220v/50Hz
Tolerance	±10%
Material	Body: Brass or Stainless Steel Seal: VITON, NBR, EPDM Armature Tube: Stainless Steel304 Stop: SS403F Springs: SS304 Shading Rings: SS304
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

Technical Parameters

Technical Parameters

Contact us for more details!

Installation

Make sure that the pipe is free of impurities.
It is recommended to install the solenoid in vertical position with the coil facing upwards.
