Pneumatic Control Wafer Lug Pneumatic Actuator Butterfly Valve

Pneumatic Control Wafer Lug Pneumatic Actuator Butterfly Valve

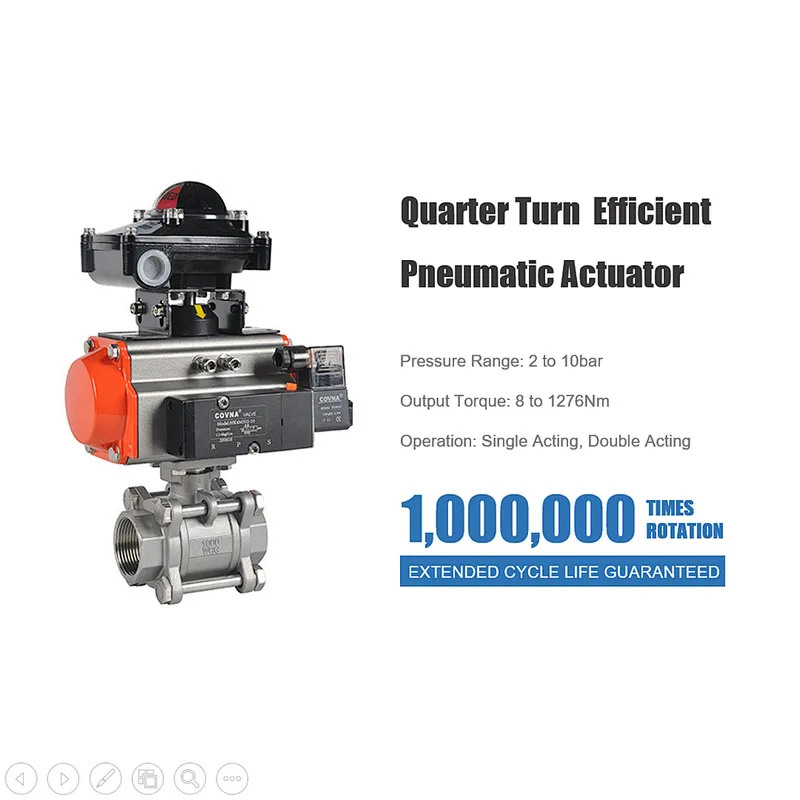

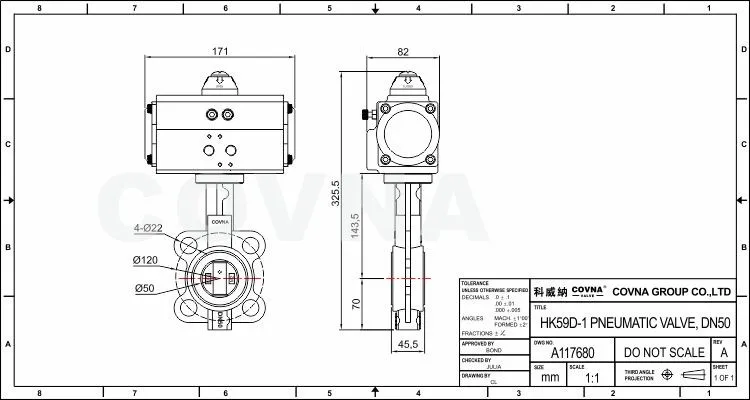

Model NO.: HK59D-1 Pneumatic Butterfly Valve
Price:: USD 36.70-45.50 / sets
Delivery: FOB
Minimum order quantity: 2 sets
Supply Ability: 10000 sets / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Material:Casting
Temperature of Media:Normal Temperature
Pressure:Low Pressure
Power:Pneumatic
Media:Water
Structure:Butterfly
Brand Name:COVNA
Model Number:HK59D-1 Pneumatic Butterfly Valve
Port Size:2"to 12"

Product Description

Advantages:
● MOQ: 1 set
●19 years of valve manufacturing experience
● Strong inventory, part of commission returned for bulk delay
● Product quality will be guaranteed for 1 year (12 Months)
●OEM service to help customers to promote their brands
● Offer various international standard, ANSI, JIS, DIN,etc
● Custom complaints handed by one stop professional service
● Inquiry will be replied within 8 hours

Item	Pneumatic Control Wafer Lug Pneumatic Actuator Butterfly Valve
Applicable Standards	GB, DIN, ANSI, ASME, JIS, API
Size Range	DN50 to DN300, 2"to 12"
Acting Mode	Double Acting, Sping Return (Single Acting) are Available
Air Supply Pressure	2.5 to 8bar
Operating Pressure	Low Pressure, 1.0 to 1.6MPa (145 to 232PSI)
Output Torque	14 to 1170Nm
Lifespan	1,000,000 (1 Million) Times
Angle of Rotation	90° ±4°
Shell Material	Aluminum Alloy Extruded
Body Material	Cast Iron, Stainless Steel are Available
Disc Material	Cast Iron, Stainless Steel are Available
Sealing Material	NBR, EPDM, FKM (VITON), PTFE
Structure	Midline
End Connection	Wafer, Flange End
Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam
Temp. of Media	Range from -10 to +80°C (14 to 176°F) with NBR Sealing
Ambient Temp.	Standard Type: -20 to +80°C (-4 to 176°F)

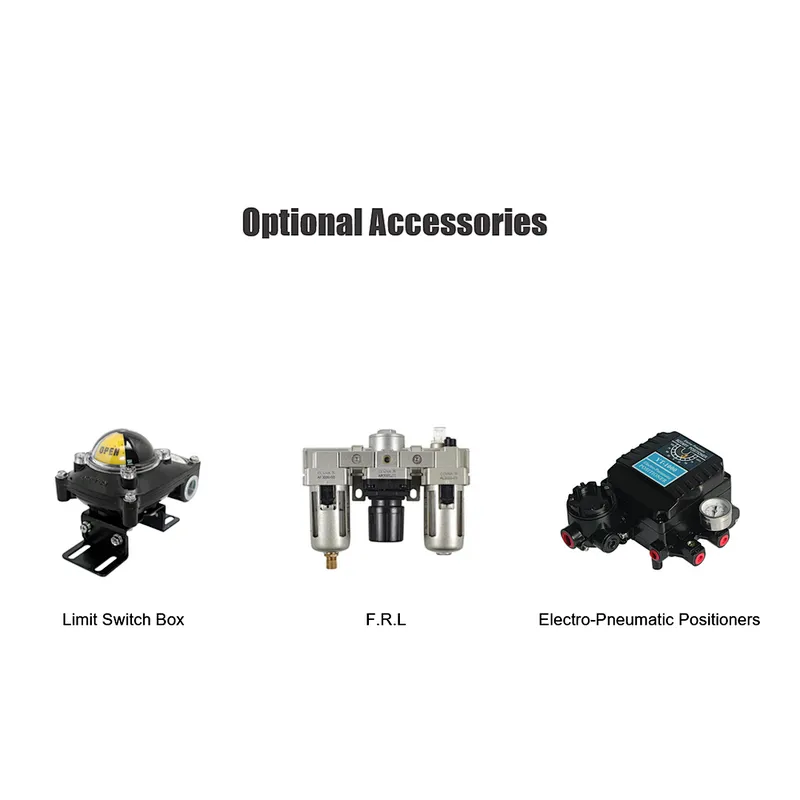

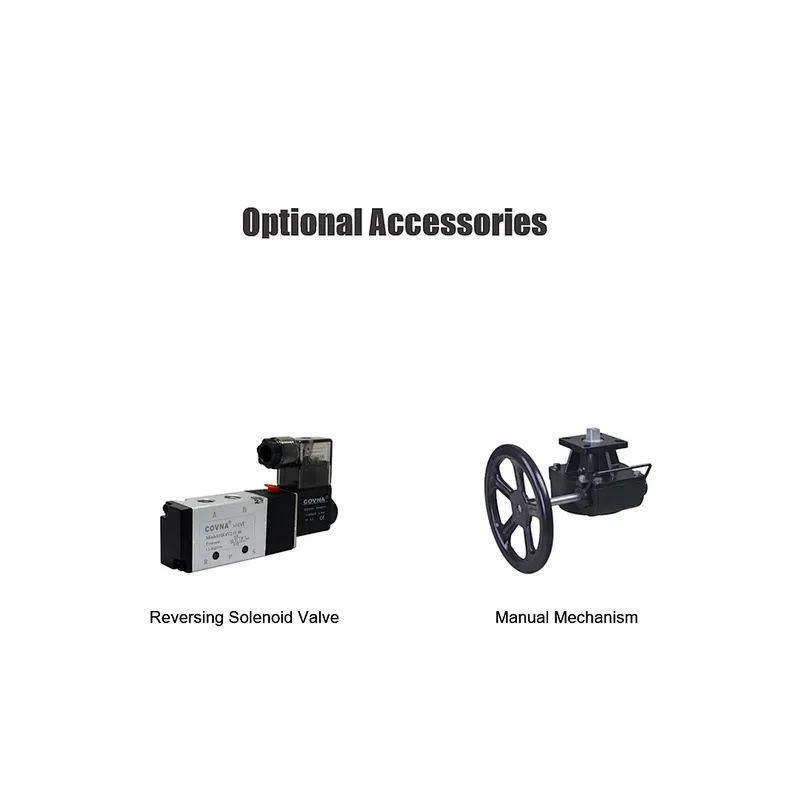

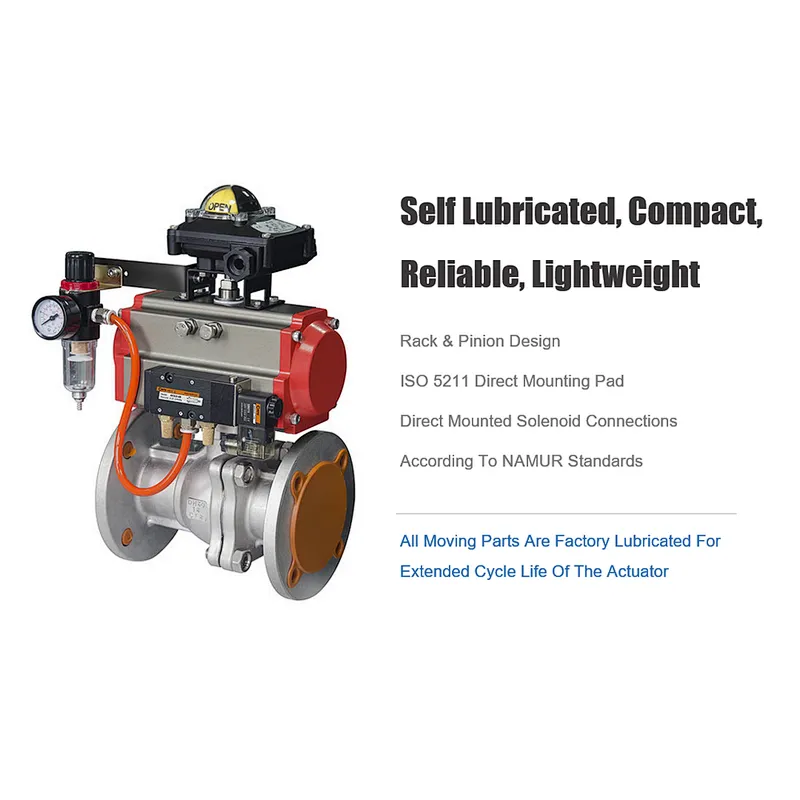

Optional Accessories	Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
Application	Food & Beverage, Refining, Desalination, Petrochemical, Chemical, Pharmaceutical, Textile, Pulp & Paper, Mining, Marine and Power Industries
Lubrication	There is no need for lubrication for standard type under normal operating conditions. Special lubricants should be used under low or high temperature operating conditions.

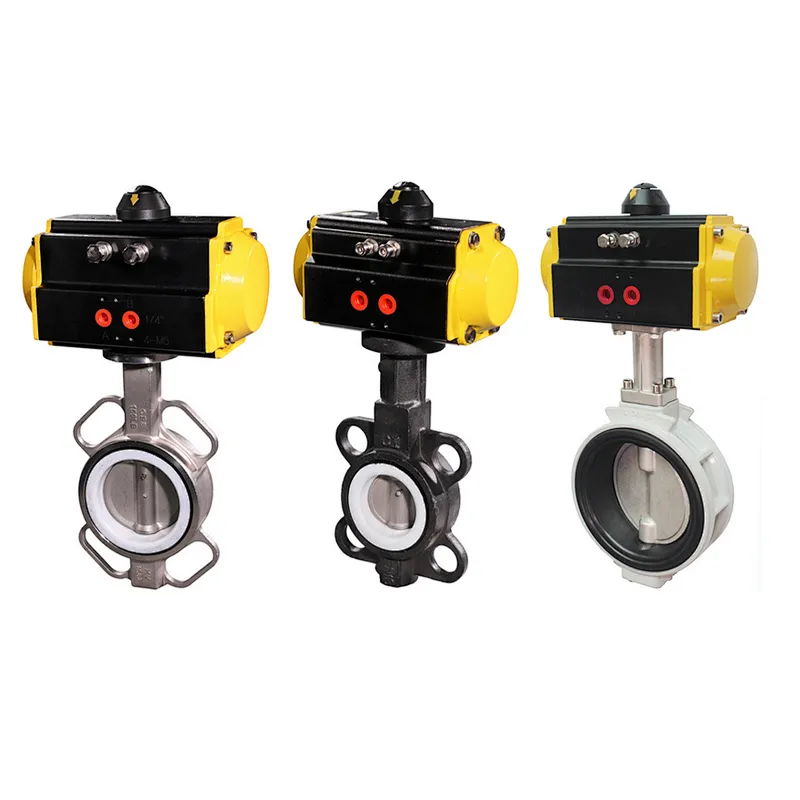

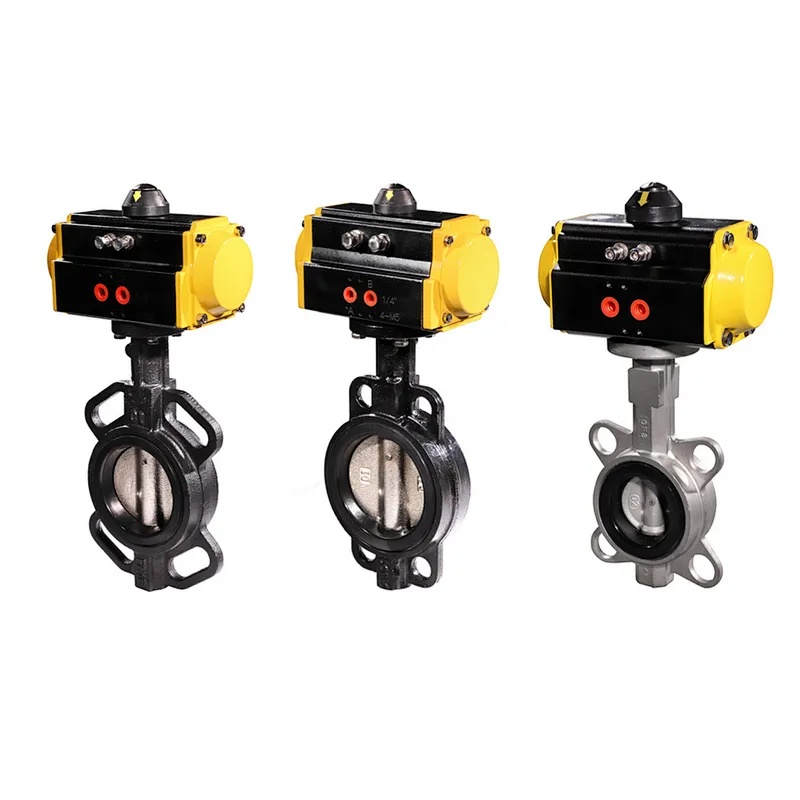

Detail Images

CI Butterfly Valve with NBR Sealing

CI Butterfly Valve with PTFE Sealing

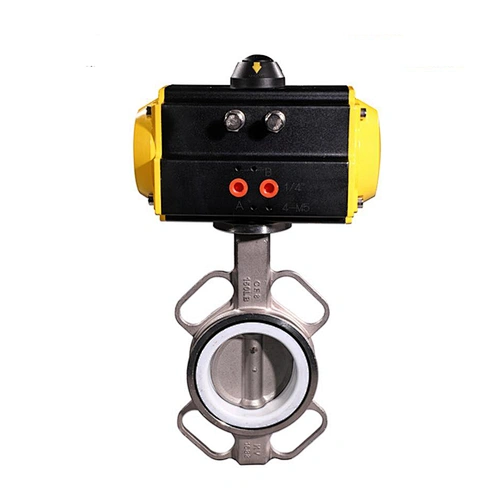

SS304 Butterfly Valve with PTFE Sealing

Click here to ask more info about the quote and the catalog

#ALIBABA SELECTION SUPPLIER WITH 19 YEARS MANUFACTURING EXPERIENCE

#ALIBABA SELECTION SUPPLIER WITH 19 YEARS MANUFACTURING EXPERIENCE

QUALITY CONTROL

COVNA havs invested in quality assurance, state-of-the-art machining and testing facilities in order to assist customers in safely controlling their processes.

START ORDER NOW

MADE BY EXPERIENCED ENGINEERS

All products are designed, engineered and manufactured by experienced industry engineers to provide safe, reliable, dependable and affordable valves, actuators and solutions.

START ORDER NOW

Principles of Single Acting & Double Acting Actuators

Principles of Single Acting & Double Acting Actuators

Principle of Single Acting Actuator (Spring Return)

CCW

Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.

Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.

Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.

Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.

Principle of Double Acting Actuator

CCW

Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.

Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A.

Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.

Air to Port B forces the pistons inwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port A.

Output Torque Diagram

*NOTE: Make sure that the torque necessary to operate the valve is compatible with the actuator torque (it depens on both actuator type and air supply). Please note that the requested torque depends not only on the valve,but on the working conditions and the safety margins of the plant in question, too.

*NOTE:

Make sure that the torque necessary to operate the valve is compatible with the actuator torque (it depens on both actuator type and air supply).

Please note that the requested torque depends not only on the valve,but on the working conditions and the safety margins of the plant in question, too.
