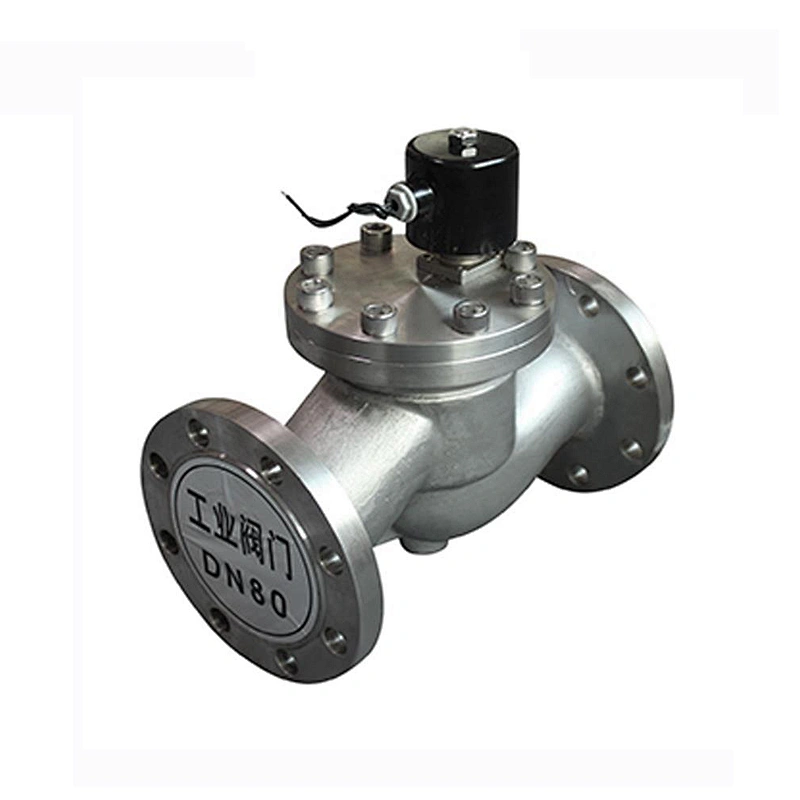

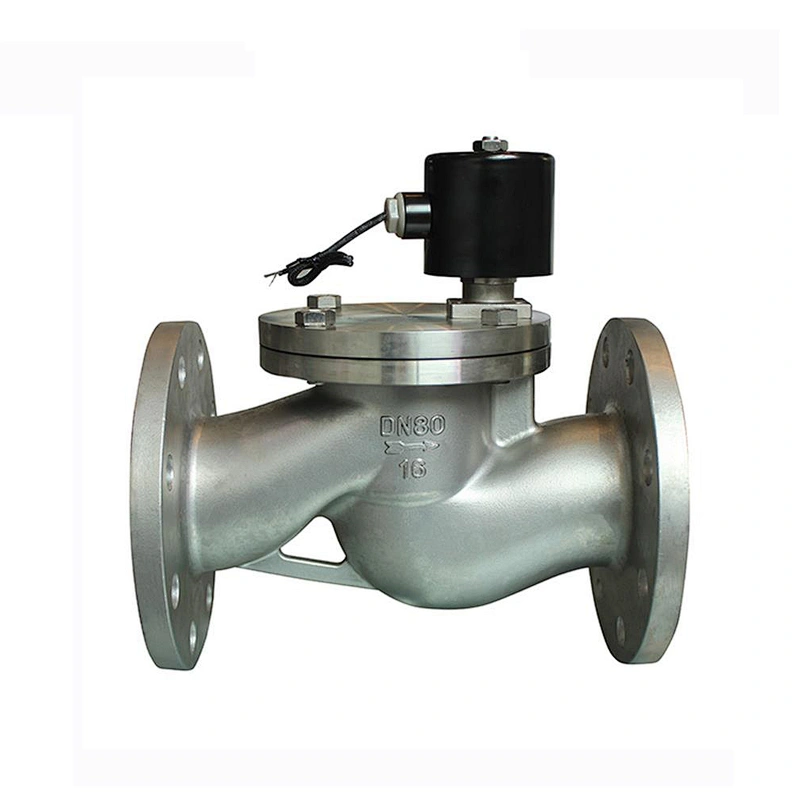

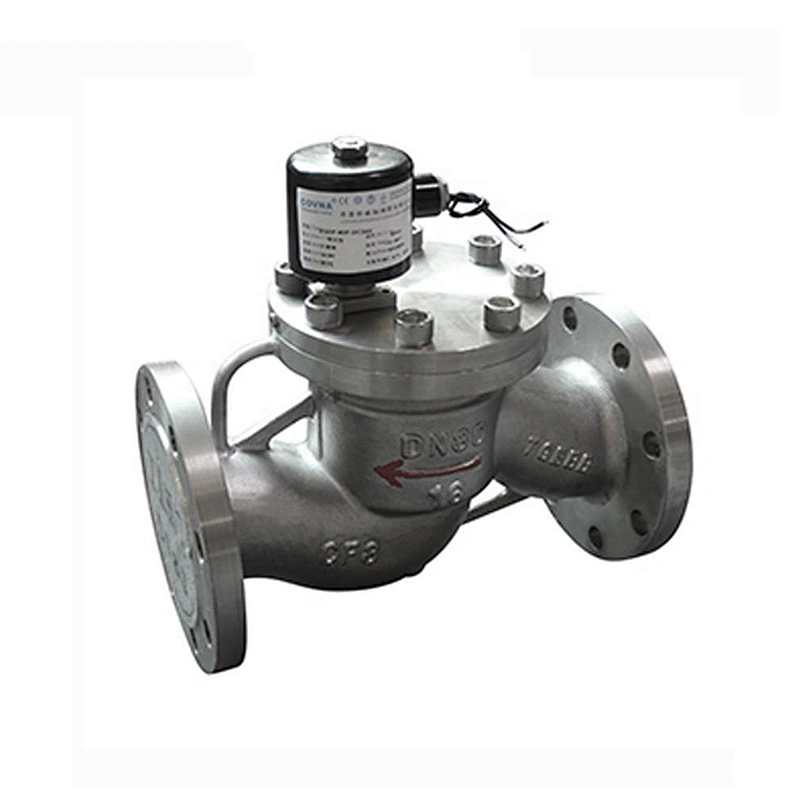

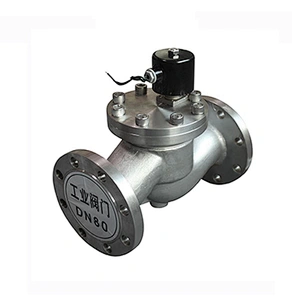

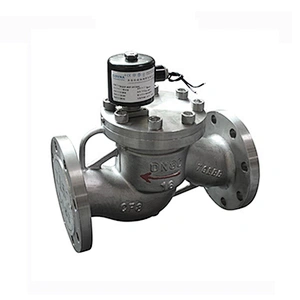

Pilot Operated 12V DC Stainless Steel Flange Gas Air Solenoid Valve

Pilot Operated 12V DC Stainless Steel Flange Gas Air Solenoid Valve

Model NO.: HK07-SF Solenoid Valve
Price:: USD 98.00-426.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 10000 set / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:China
Application:General
Material:Stainless Steel
Temperature of Media:Medium Temperature
Pressure:Low Pressure
Power:Solenoid
Structure:Pilot
Media:Diesel Fuel
Brand Name:COVNA
Model Number:HK07-SF Solenoid Valve
Port Size:2"to 6", DN50 to DN150

Specifications

Item	Pilot Operated 12V DC Stainless Steel Flange Gas Air Solenoid Valve
Size Range	2"~ 6"
Medium	Water, Air, Steam, Gas, Oil, etc
Temperature	NBR: -5℃~80℃; EPDM: -5℃~120℃; VITON: -5℃~120℃
Pressure	0.03~1.6MPa
Port Thread	Flange, NPT, BSPP, BSP
Voltage	DC-12V, 24V AC-24V, 120V, 240V/60Hz; 110V, 220v/50Hz
Tolerance	±10%
Material	Body: Brass or Stainless Steel Seal: VITON, NBR, EPDM Armature Tube: Stainless Steel304 Stop: SS403F Springs: SS304 Shading Rings: SS304
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

Technical Parameters

Technical Parameters

Contact us for more details!

Installation

Make sure that the pipe is free of impurities.
It is recommended to install the solenoid in vertical position with the coil facing upwards.

Application

Production Flow

About COVNA

COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
