- Place of Origin:CN;GUA
- Application:General
- Material:Stainless Steel
- Temperature of Media:Medium Temperature
- Pressure:Medium Pressure
- Media:Water
- Structure:Ball
- Power:Motor Operated
- Brand Name:COVNA
- Model Number:Ball Valve
- Port Size:1/2"-4"
Brass Body Material Motorized Ball Valve
Typical ApplicationsMotor Drive Ball Valve
1. IC Card Water Meters, Heat Energy Meters, Solar Instrument
2. The Central Air Conditioning Fan Coil, Fire Sprinkler
3. Water Saving Irrigation, Automatic Control System, Industrial Mini Automatic Control Equipment
4. Agriculture Irrigation Equipment
5. Drinking Water Equipment, Water Heater, Washing Machine, AHW etc.
Technical ParametersMotor Drive Ball Valve
| Product size | NPT1/2'', NPT/BSP 3/4", NPT 1'' (Opitonal) |
| Max working pressure | 1.0MPa |
| Circulation medium | Fluid, Air |
| Rated voltage | DC5V, DC12V, DC24V, AC/DC9-35V, AC110V-230V (Optional) |
| Wiring control methods | CR201, CR202, CR301, CR302, CR303, CR304, CR501, CR701, CR702 (Optional) |
| Working current | ≤500mA |
| Open/close time | ≤5 Sec |
| Life time | 70000 times |
| Valve Body material | Brass, Nickel plated Brass, 304 Stainless steel (Optional) |
| Actuator material | Engineering Plastics |
| Sealing material | EPDM & PTFE |
| Actuator rotation | 90° |
| Max. torque force | 2 N.M |
| Cable Length | 0.5m, 1.5m (Optional) |
| Environment temperature | -15℃~50℃ |
| Liquid temperature | 2℃~90℃ |
| Manual override | No |
| Indicator | Yes |
| Protection class | IP67 |
Specification

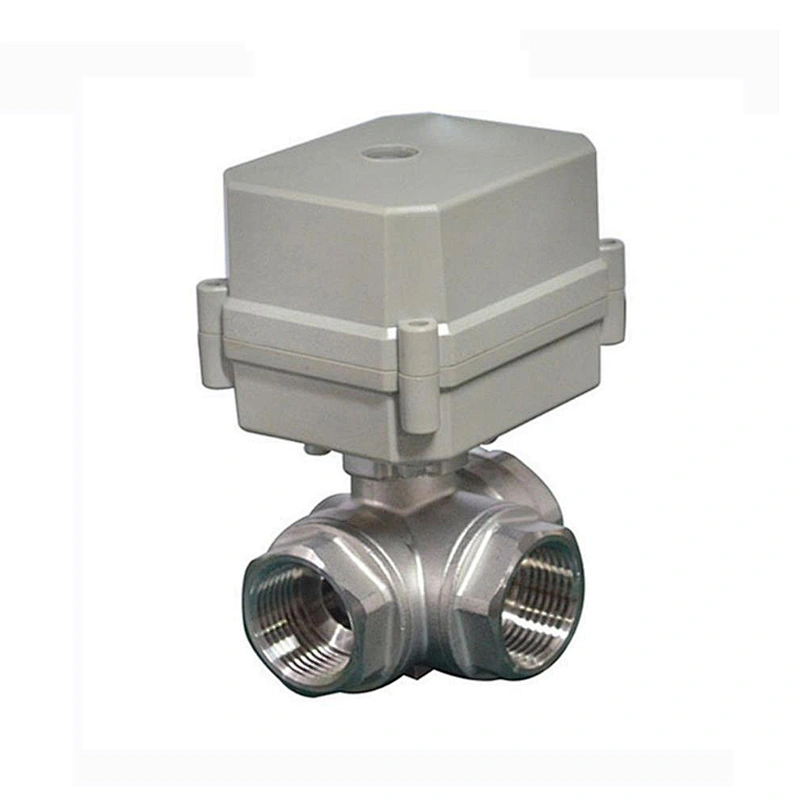

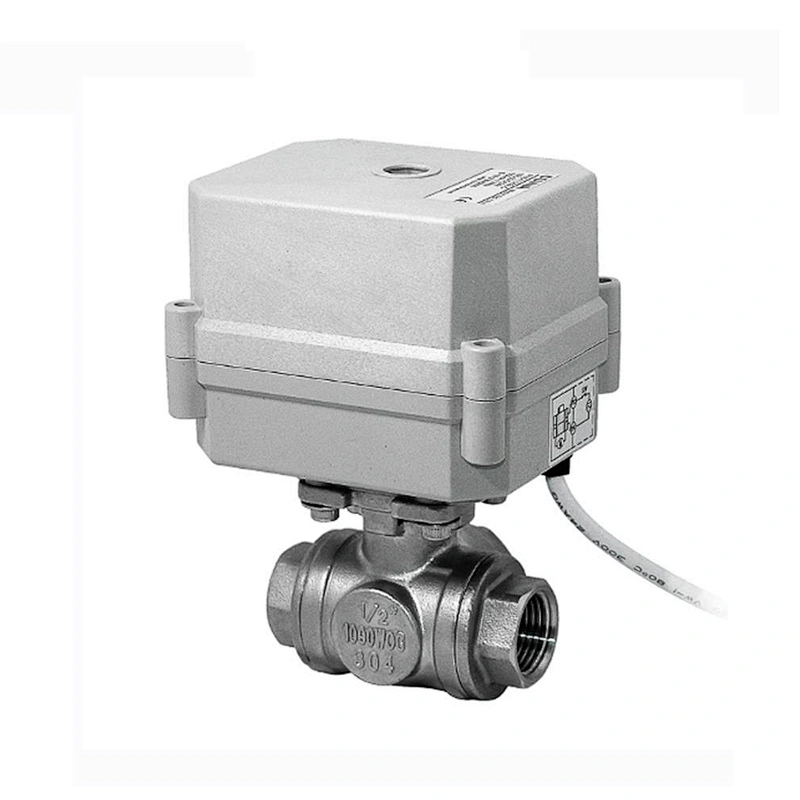

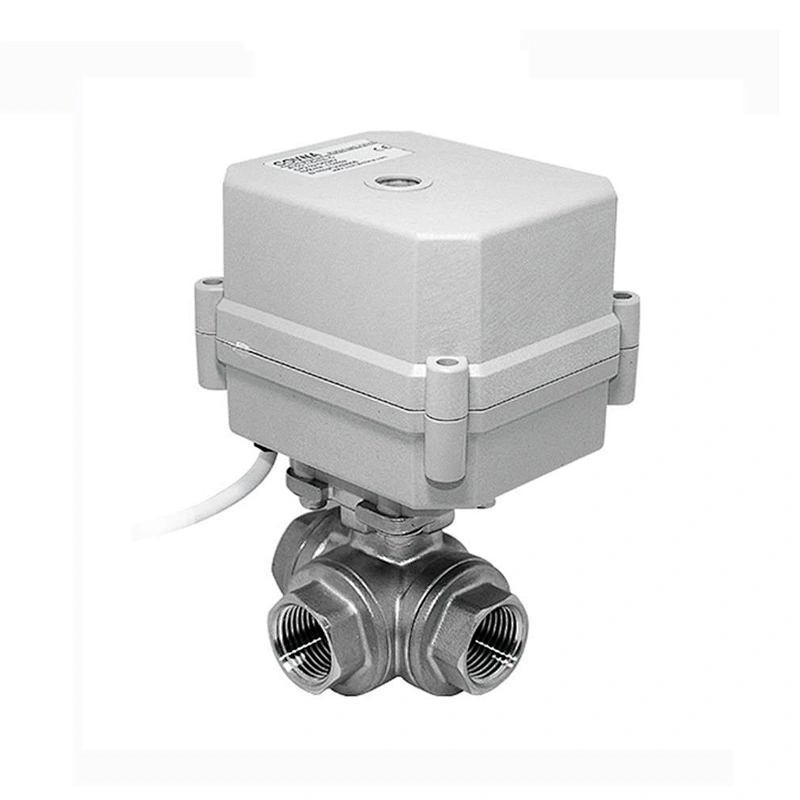

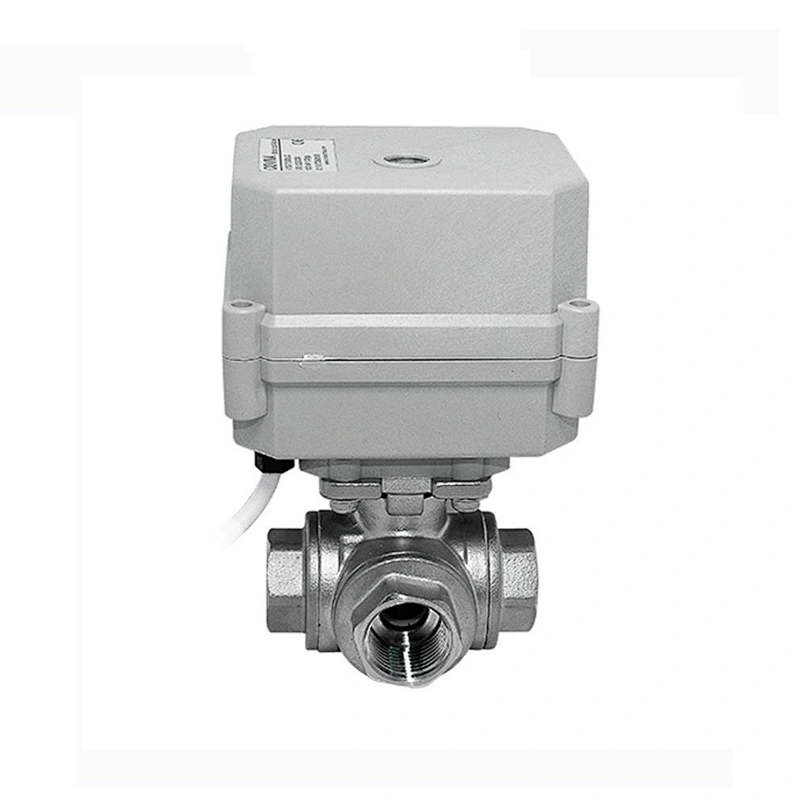

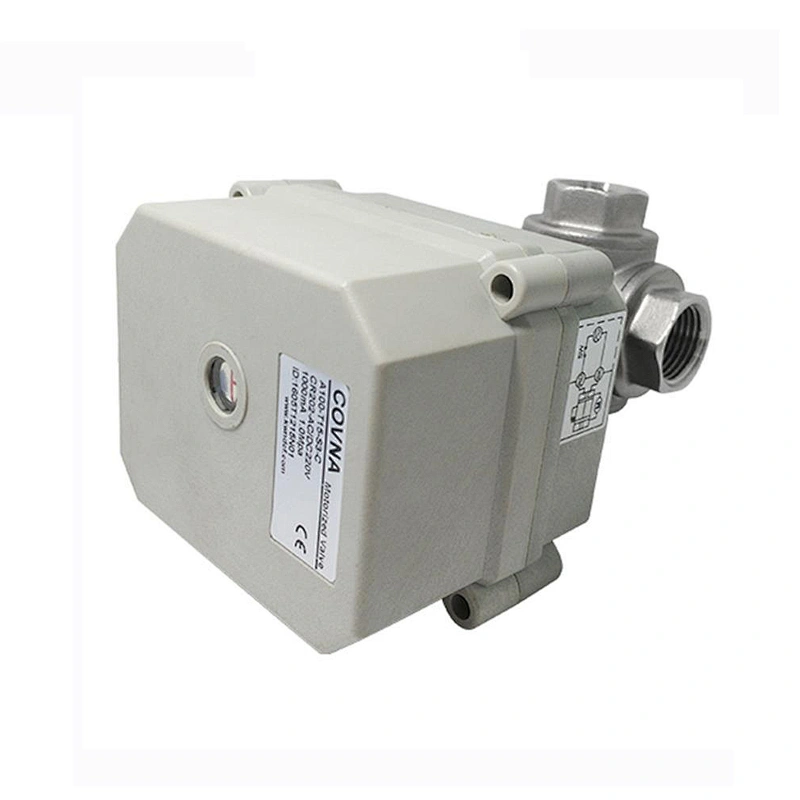

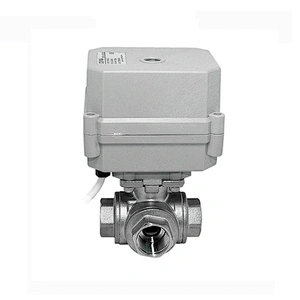

Stainless Steel Mini Ball Valve
| Model | Wiring Control | Working Voltage | Max. Torque |
| HK15-S2-A | CR2 01 | DC5V, DC12V, DC24V | 2N·M |
| HK15-S2-A | CR202 | AC/DC9-24V, AC/DC9-35V, AC110V-230V | 2N·M |
| HK15-S2-A | CR3 01 | DC5V, DC12V, DC24 | 2N·M |
| HK15-S2-A | CR3 02 | DC9-35V | 2N·M |
| HK15-S2-A | CR3 03 | AC/DC9-35V | 2N·M |
| HK15-S2-A | CR3 04 | DC5V, DC12V, DC24V, AC/DC9-35V | 2N·M |
| HK15-S2-A | CR5 01 | DC5V, DC12V, DC24V | 2N·M |
| HK15-S2-A | CR5 02 | AC/DC9-24V, AC/DC9-35V, AC110V-230V | 2N·M |
| HK15-S2-A | CR7 01 | DC9V-35V | 2N·M |
| HK15-S2-A | CR7 02 | DC5V, DC12V, DC24V, AC/DC9-35V | 2N·M |
| HK15-S2-A | CR7 03 | DC12V, DC24V | 2N·M |
Workshop

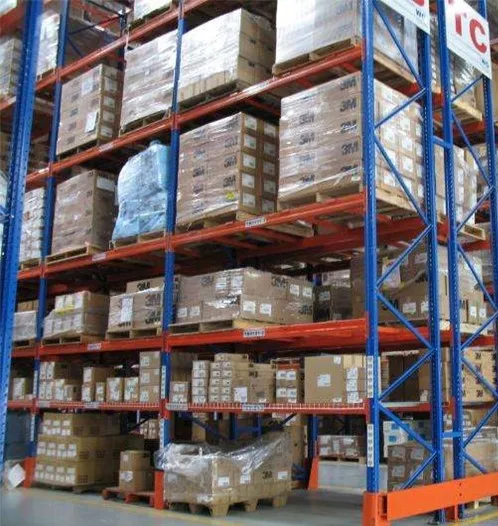

Packaging & Shipping
