- Place of Origin:CN;GUA
- Material:Alloy
- Brand Name:COVNA electric solenoid valve
- Model Number:HKPS01A-15 electric solenoid valve
- Power:Solenoid
- Pressure:Medium Pressure
- Application:General
- Port Size:1/2",,3/4",1"
- Structure:Diaphragm
- Standard or Nonstandard:Standard
- Temperature of Media:Medium Temperature
- Media:coal gas
electric solenoid valve
Stainless steel Gas Solenoid Valve:
| Type | Air m3/h | insert pressure mbar | Kv**** m3/h | P 220V 120V (1.) 24V VA/W VA/W | |
| HKPS01A-15 | 3.8 | 200 | 4.3 | 32 | - |
| HKPS01A-20 | 8 | 200 | 9.1 | 31 | - |
| HKPS01A-20 | 8 | 360 | 9.1 | 36 | - |
| HKPS01A-25 | 10 | 200 | 11.4 | 31 | - |
| HKPS01A-25 | 10 | 360 | 11.4 | 36 | - |
| HKPS01A-25 | 3.8 | 1800 | 4.3 | 36 | - |
| HKPS01A-40/32 | 18 | 200 | 20.5 | 36 | - |
| Table specification | |||||||||
| Type | DN | Connetc Raccord | L mm | H1 mm | H2 mm | H3 mm | H4 mm | E mm | (1.) mm |
| HKPS01A-15 | 15 | Rp ½ | 71 | 161 | 112 | 24 | 92 | 56 | - |
| HKPS01A-20 | 20 | Rp ¾ | 91 | 175 | 126 | 33 | 101 | 61 | - |
| HKPS01A-20 | 20 | Rp ¾ | 91 | 175 | 126 | 33 | 101 | 66 | - |
| HKPS01A-25 | 25 | Rp 1 | 91 | 175 | 126 | 33 | 101 | 61 | - |
| HKPS01A-25 | 25 | Rp 1 | 91 | 175 | 126 | 33 | 101 | 66 | - |
| HKPS01A-25 | 25 | Rp 1 | 91 | - | 126 | 33 | 101 | 66 | - |
| HKPS01A-40/32 | 40 | Rp 1½ | 128 | 194 | 145 | 39 | 107 | 66 | - |
| With metering and pilot gas supply tappings Rp¼ on both sides connected to the inlet. | |||||||||
| With flow adjustment. | |||||||||
| Cable gland: Pg 11. terminal:2.5 mm2 | |||||||||
Can be supplied, if requested: with coupler plug acc.to ISO4400,with damping unit, with position indicator. | |||||||||
| Adjustment of gas release with SG.,L | |||||||||
Adjustable from 0-70% of the throughput(with Δp=1 mbar). The start gas flow is not adjusted at the works. | |||||||||
| the damping device is taking full effect. | |||||||||
| Switching frequency: arbitrary | |||||||||
| Ambient termperature: -20℃ to +60℃ | |||||||||
| Protection: IP 54 acc. To IEC 529 Power factor of solenoid coil:cos φ=1 | |||||||||
| Coil insulation: Insulating material class F | |||||||||
| 220/240V +10/-15%; 50/60 Hz | |||||||||
| The prevailing a.c.voltage is lead to the solenoid coil via a protective circuit rectifier. | |||||||||
| Duty cycle:100% EC | |||||||||
| Fuse: max. 6.3 A anti-surge | |||||||||
| Fitting | |||||||||
| When fitting the vavle to the pipe work, do not use the solenoid as a lever, | |||||||||
| always use a suitable spanner. | |||||||||

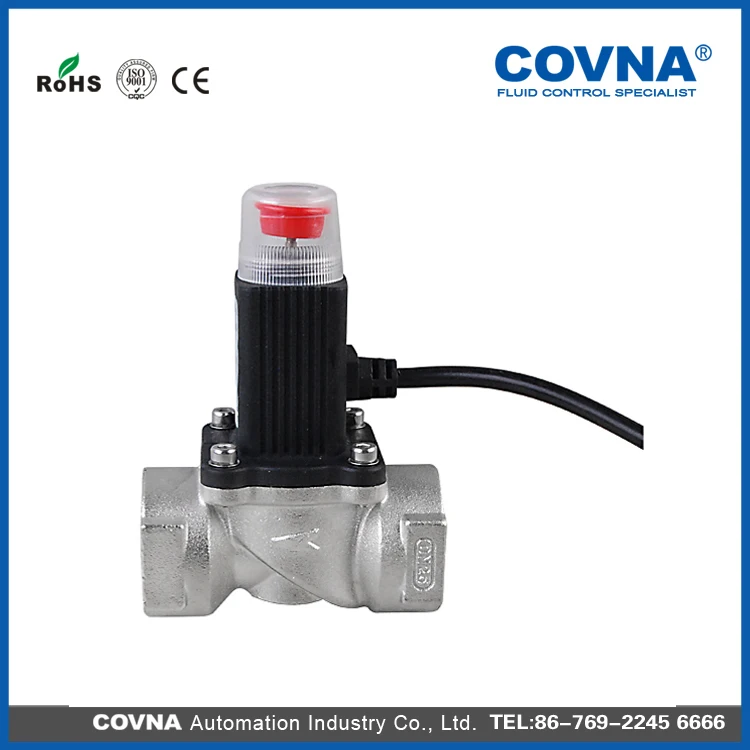

electric solenoid valve
- Certifications
- We have CE and RoHS certificate,the ISO9001 certificate is under processing.
electric solenoid valve
electric solenoid valve
Company profile, Factory view and Office view
We specialize in developing,manufacturing and selling solenoid valve,pneumatic valve,electric valve,
pulse valve,valves,pneumatic components,solenoid valve accessory,pipeline accessory.
electric solenoid valve
FAQS
1. Is sample order acceptable?
Yes, it's acceptable.
2. How to place the order?
You can call us and send email to us or inquiry us on alibaba directly
3. What's the delivery?
There are standard products in stock.
4. How to make the payment?
L/C, T/T, Western Union is acceptable.
5. Do you have a complete catalogue showing all your products?
Our internet product catalogue is the most extensive information
source:www.covna-china.com
6. Can you deliver products exclusively made for us?
Yes, we have the possibility to develop products that are uique
for one customer subject to individual agreements.
The products may differ in appearance,
technical features or packaging.
Please contact us to discuss your requirements.
7. What the shipment?
1.By sea
2.By air
3.Express service
1.18 months warranty
Great quality products
We stand behind the quality of our products 100%
All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in new condition in OEM or Original packing.
2.MOQ
There is no MOQ for COVNA design but for cusomer's, the MOQ according your design to
decide.we will offer the free sample for the massive products
3.Package
Our package method is in perfect condition, or according customized.
4.Delivery
Shipment term: CIF/CFR/FOB Shenzhen China, EXW Dongguan China
Shipment date: 7-30 days after receiving the deposit
We will ship your items by sea, by air(DHL,UPS,FedEx,TNT, EMS,ARAMEX)
