COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
- Place of Origin:CN
- Temperature of Media:High Temperature
- Temperature of Media:Low Temperature
- Temperature of Media:Medium Temperature
- Temperature of Media:Normal Temperature
- Power:Solenoid
- Media:Water
- Structure:Diaphragm
- Application:Water Fountain
- Brand Name:COVNA
- Model Number:2W-P Plastic Solenoid Valve
- Port Size:1 inch Solenoid Valve
Specifications

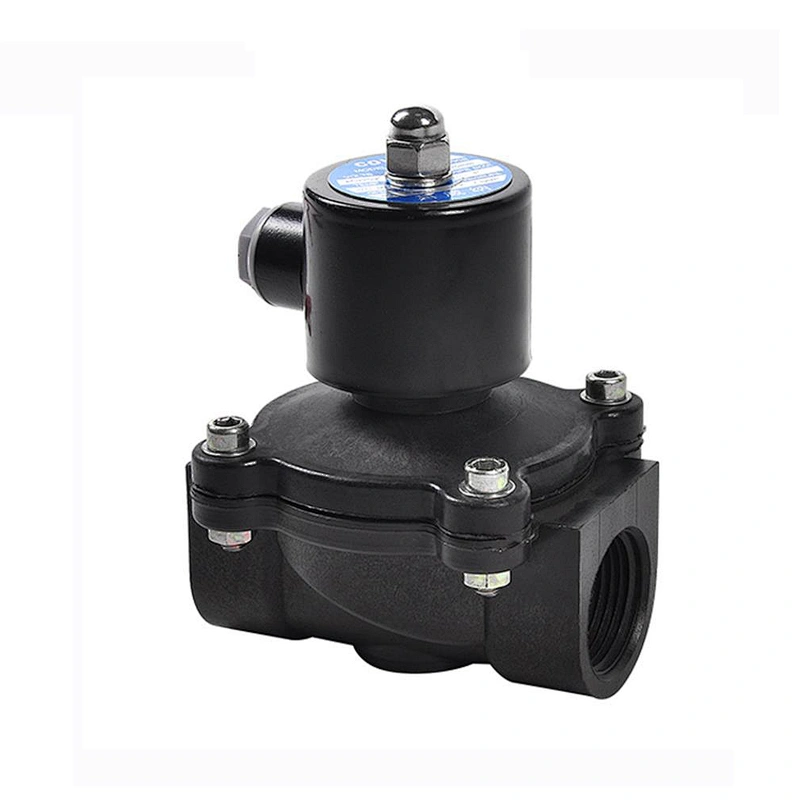

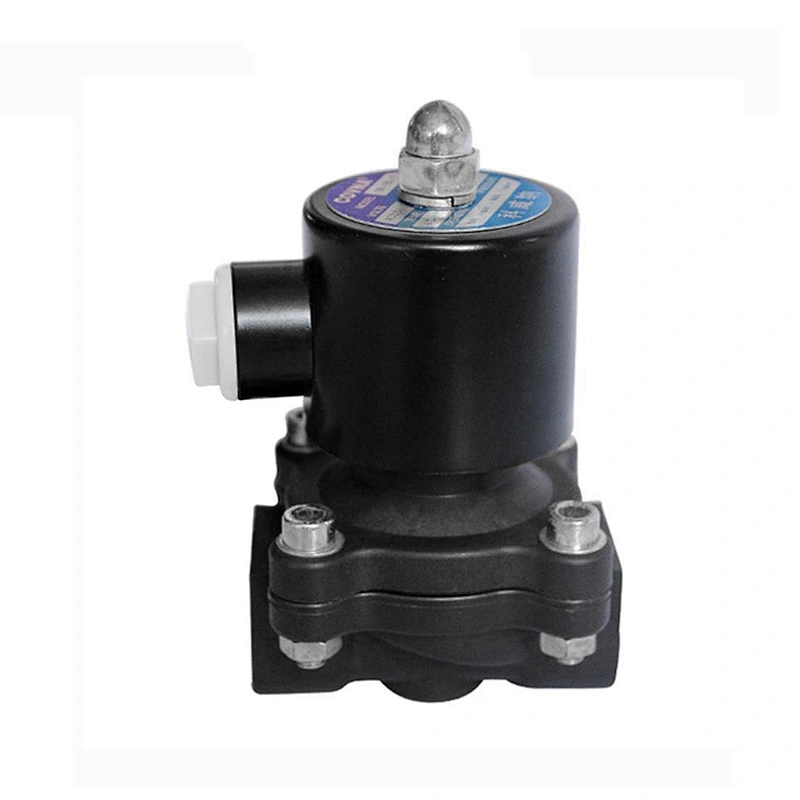

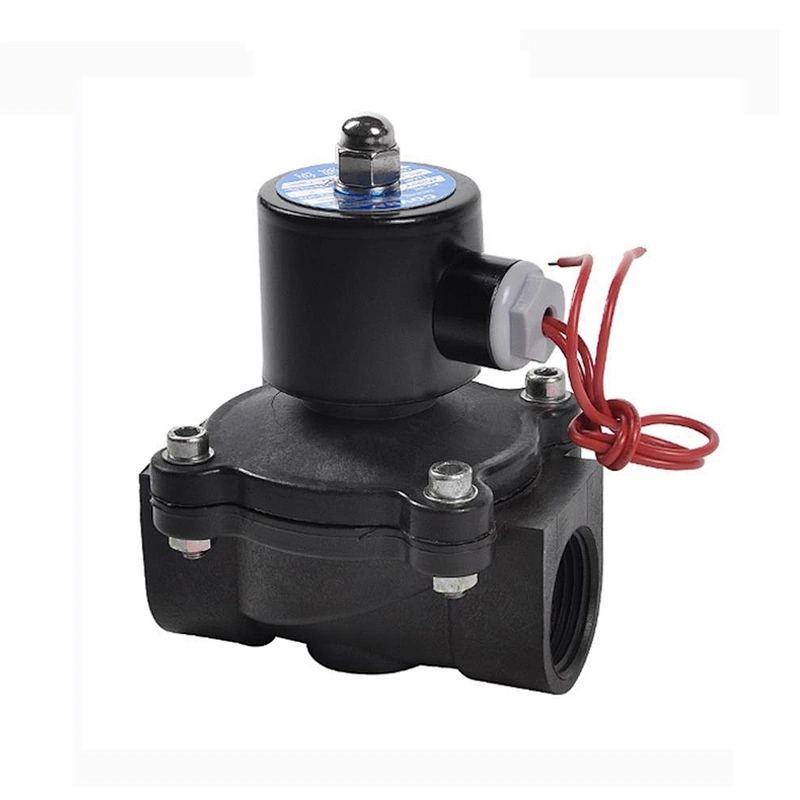

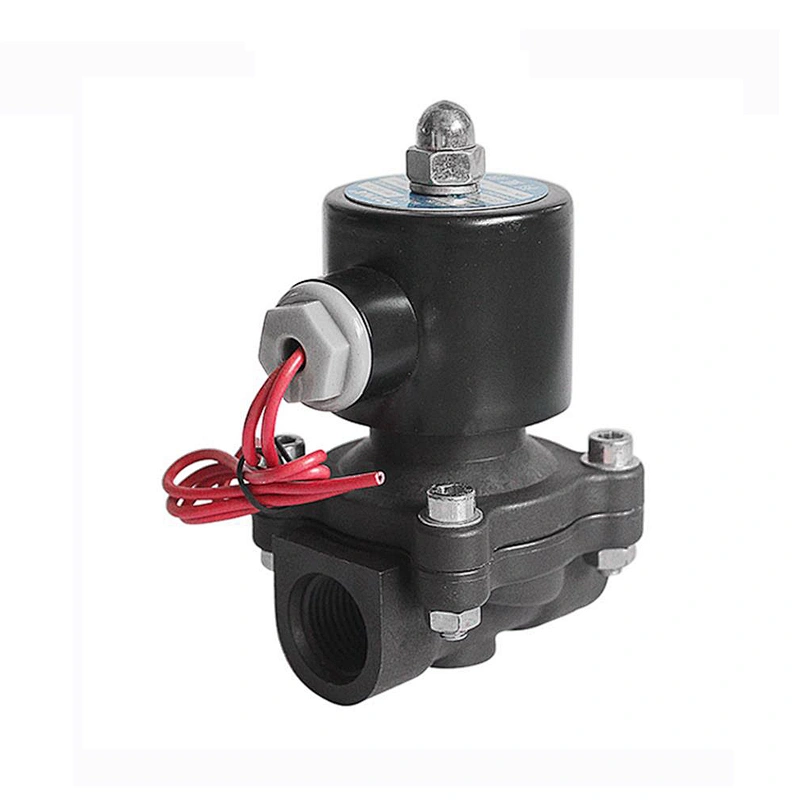

Item | COVNA 2 Way 24VAC Normally Closed IP68 Underwater Plastic Water Fountain Solenoid Valve |
Size Range | 3/8"~ 2" |
Medium | Water, Air, Steam, Gas, Oil, etc |
Temperature | NBR: -5℃~80℃; EPDM: -5℃~120℃; FKM: -5℃~120℃ |
Pressure | 0~1.0MPa |
Port Thread | NPT, BSPP, BSP, Flange |
Voltage | DC-12V, 24V AC-24V, 120V, 240V/60Hz; 110V, 220v/50Hz |
Tolerance | ±10% |
Material | Body: Brass or Stainless Steel Seal: FKM, NBR, EPDM Armature Tube: Stainless Steel304 Stop: SS403F Springs: SS304 Shading Rings: SS304 |
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |
Technical Parameters | ||||||
Installation
Make sure that the pipe is free of impurities.
It is recommended to install the solenoid in vertical position with the coil facing upwards.
Application
Production Flow
About COVNA
COVNA Top Sales Team
Outward Bound Activity
COVNA is warmly popular all over the world and it's certified by TUV, SGS, RoHS, ISO 9001 for the entire process of design and manufacture of valves.

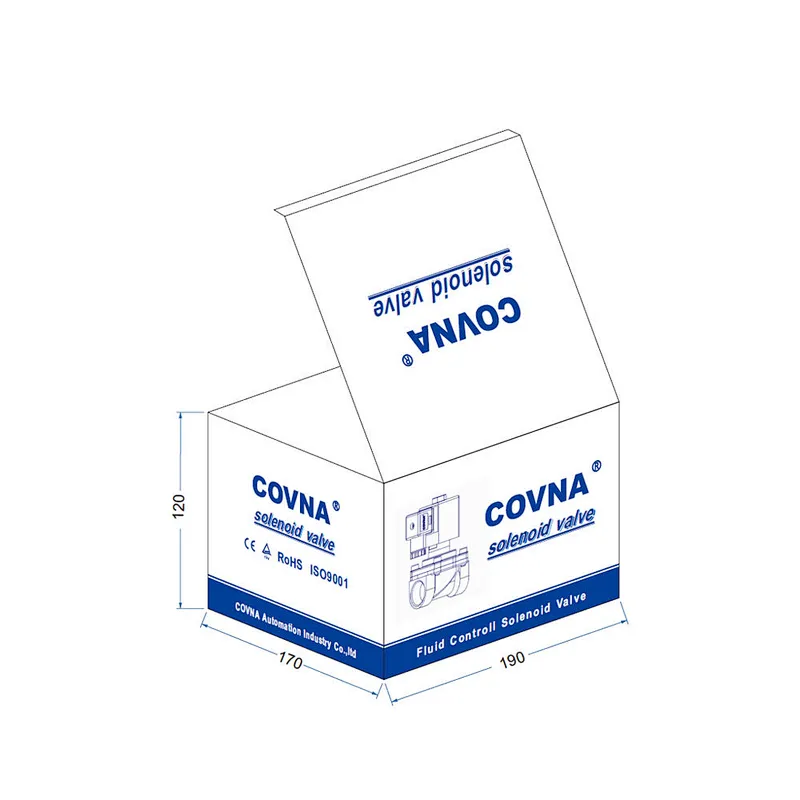

Packing
Packing: COVNA 2 Way 24VAC Normally Closed IP68 Underwater Plastic Water Fountain Solenoid Valve packed with foam in carton.
Delivery Time: 7 working days after payment confirmed.
