- Place of Origin:CN;GUA
- Material:Alloy

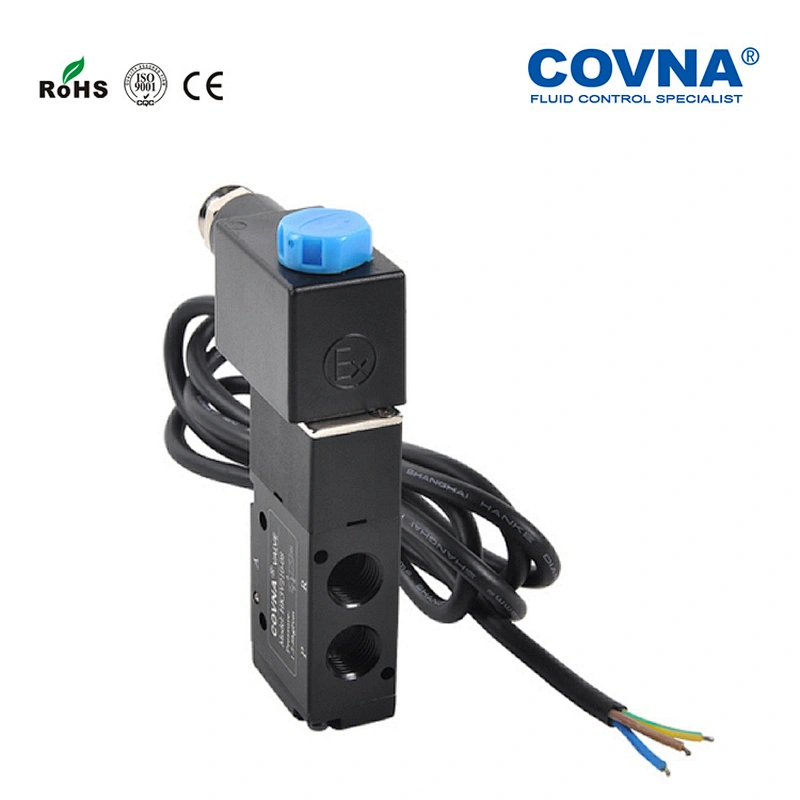

- Brand Name:COVNA brand 4V210-08 Gas Control Solenoid Valve/ 5-way/ air,gas/ 12V,2
- Model Number:HK4V210-08 type 4V210-08 Gas Control Solenoid Valve/ 5-way/ air,gas/ 1
- Power:Pneumatic
- Pressure:Medium Pressure
- Port Size:1/8"-1"
- Structure:Control
- Standard or Nonstandard:Standard
- Temperature of Media:Medium Temperature
- Media:AIR
1. Service life: 10 million cycle times.
2. The bodies are mirror finished and hardending treated.
3. Equipped with imported oil seals with smaller fricion and longer service life.
4. With imported coils, low power consumption, speedy response.
5.Capable of long service time for 18 months
5way pneumatic single coil directional solenoid valves factory
Features
1. 3/2 5/2 way valve
2. Long lifecycle
3. Coils made by hands
Specifications
good quality and favolable price.
V series solenoid valve and pilot valve is the common controlling element, which has the full kinds of port size, from 1/8 to 1. And It also has different specification, flow rate and position. It has many connecting ways with the execution element.
| odel | HK4V210-08 |
| Position and way NO. | 5/2 way 5/3 way ,3/2 way |
| Effective area | 16mm2(CV=0.89) |
| Port size | Air inlet=Air outlet=1/4'' Exhaust=G1/8″ |
| Fluid | 40 micron filtered air |
| Operation | Inside pilot type |
| Operating pressure | I0.15~0.8MPa |
| Max.proof pressure | 1.2MPa |
| Temperature | 5~50 C |
| Allowable boltage | ±10% of rated voltage |
| Power consumption | AC:2.5VA DC:2.5W |
| Coil insulation &protection grade | Class F.IP65 |
| Electriacl entry | Lead wire or connector |
| Higest action frequency | 5 cycle/second |
| Shortest excitation time | 0.05 second |

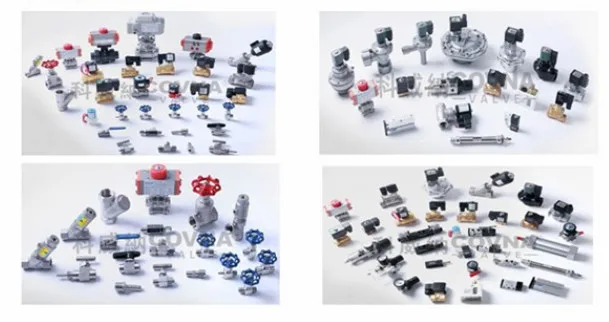

Our products including listed:
Cylinder Series:DNC,SQ cylinder, SI,SC,SU standard cylinder
DSN Series ISO6432 cylinder, ADVU, SDA,CQ2B compact cylinder
MA/MAL Mini cylinder
CJ2,CJP Series Needle cylinder
CYI Series Rodless cylinder
CXS,TN Series Double-shaft cylinder
CU Series Free Installation cylinder
MGP Series Three-shaft cylinder
RSQ Series Stopper cylinder
MSQ Series Rotary Table, Rack & Pinion cylinder
Parallel Style Wide Opening Air Gripper
SHZ Series Pneumatic Parrallel Gripper, SHC point type Gripper
Solenoid Valve: Two(Three)-position Five-way Solenoid Valve,Air control Valve, 4V/4A,3V/3A ,3V1 Solenoid Valve
4M Series Namur Valve, VF/VZ,MVSD Series Solenoid Valve
4H, TSV Series Hand-pull Valve
4H Series Hand-draw Valve
HV,K3 Series Hand-switching Valve
4F series Foot Valve
JM,MSV Series Mechanical Valve
ST,RE,AS,ASC,KA,CV,XQ,QE,KLA,KP,HSV valve
Two-position Two-way Solenoid Valve: 2W Solenoid Valve,
2V, 2P, 2L, PU, VX2120, 2Q Solenoid Valve
6213 Series Diaphragm Type Solenoid Valve
MCF, YMF Series Pulse Valve
JZF Series Plastic Piston Valve, SSJZF Series Stainless Steel Piston Valve
FRL Unit: Air Preparation including Filter, Regulator and Lubricator
Series Air Preparation ,Auto Drain
Fittings: plastic fitting, G thread fitting, mini fitting, stop fitting, Metal fitting, PU tube
Check Valve, Multipass Quick Coupler, Muffler, Air gun
Air Press Punch, Vane Pump
Hydraulic Ball Valve
1.1 year warranty
Great quality products
We stand behind the quality of our products 100%
All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in new condition in OEM or Original packing.
2.MOQ
There is no MOQ for COVNA design but for cusomer's, the MOQ according your design to decide.we will offer the free sample for the massive products
3.Payment
We usually accept T/T(wire transfer), Western Union
Trade Currency: USD or RMB
TT 30% deposit in advance,70% balance paid before shipment.
(sample order) T/T / Western union 100% at sight
4.Package
Our package method is in perfect condition, or according customized.
5.Delivery
Shipment term: CIF/CFR/FOB Shenzhen China, EXW Dongguan China
Shipment date: 7-30 days after receiving the deposit
We will ship your items by sea, by air(DHL,UPS,FedEx,TNT, EMS,ARAMEX)
We specialize in developing,manufacturing and selling air cylinder,air solenoid valve,air source
treatment, solenoid valve,pneumatic valve,electric valve,pulse valve,valves,solenoid valve accessory,
pipeline accessory.
Company profile
Workshop view
Workshop view
We have CE and RoHS certificate,the ISO9001 certificate is under processing
FAQ
Q: How much is our minimum order quantity?
A: Our minimun quantity is 1 Piece.
Q:Could you offer the free samples?
A:Yeah,we could offer the free samples for the massive products more than 500pieces
Q: What's your business scope?
A: Our business scope is air cylinder,air source treatment ,air solenoid valve ,motorize valve ,
pneumatic valve ,quick fitting,etc.
Q: What's your delivery date?
A: It depends on the number of orders. Delivery date is 7-30 days. If you need emergency products,
we can speed up the production of the first arrangement
Q: What is the price of the product?
A: Our prices are based on the size and type of material, if you can give me the information,
then we can give you an estimated price is for reference only. We can do any size and any color.
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials processing. Valve/ solenoid valve /electric
valve /pneumatic valve and air cylinder products and so on.
Q: How many years do you warrant?
A: 18 months warranty.
Q:How many years have you done valves,cylinders?
A: More than 13 years.
