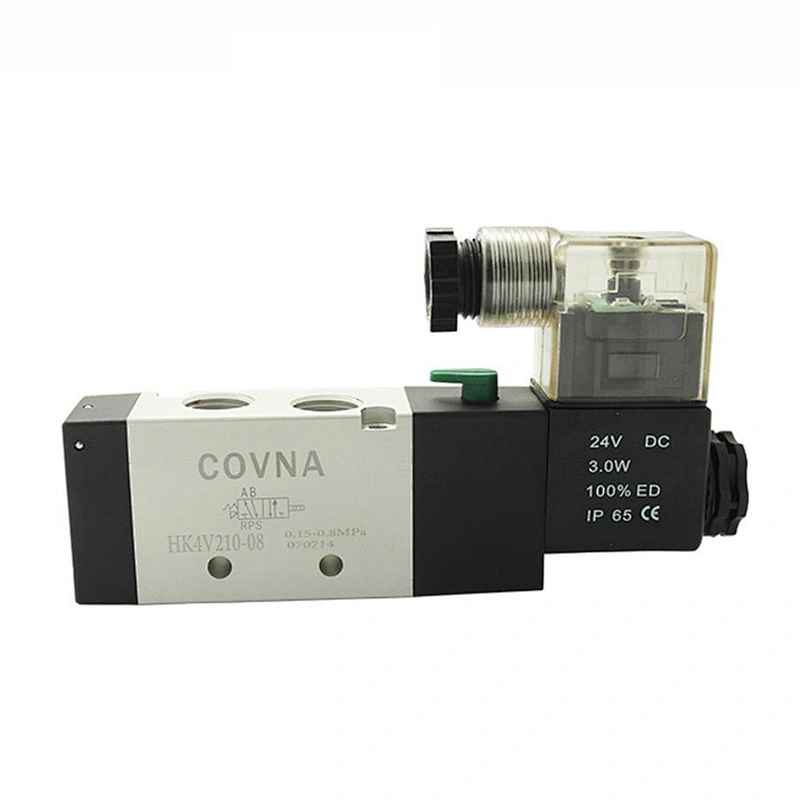

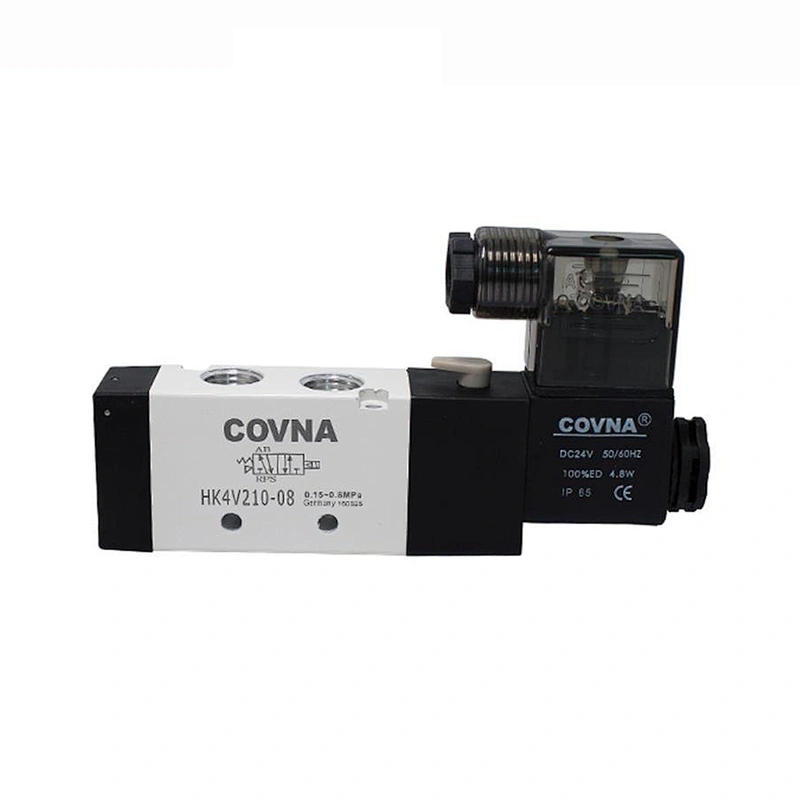

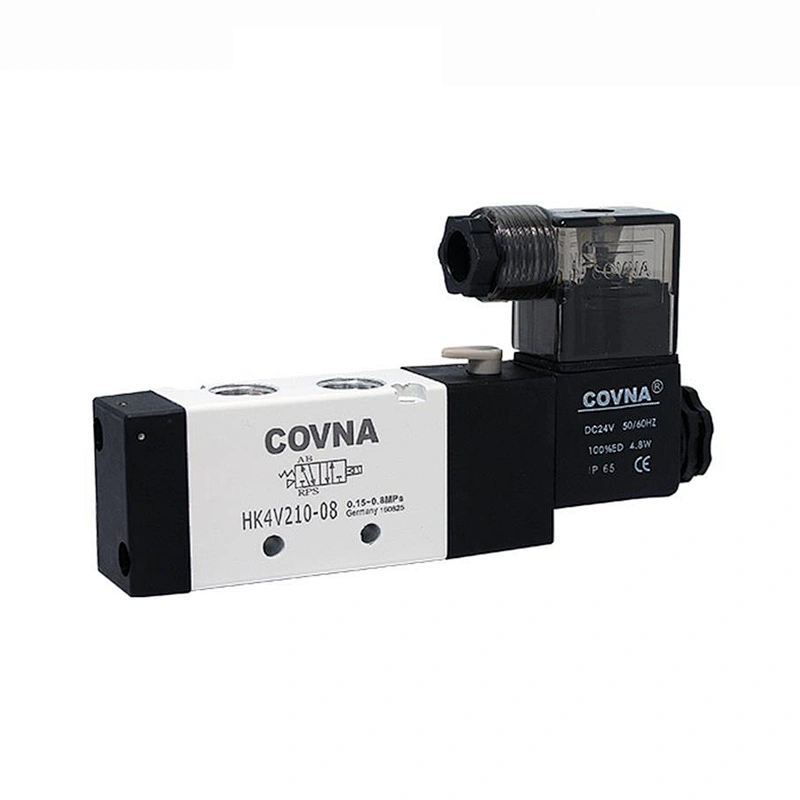

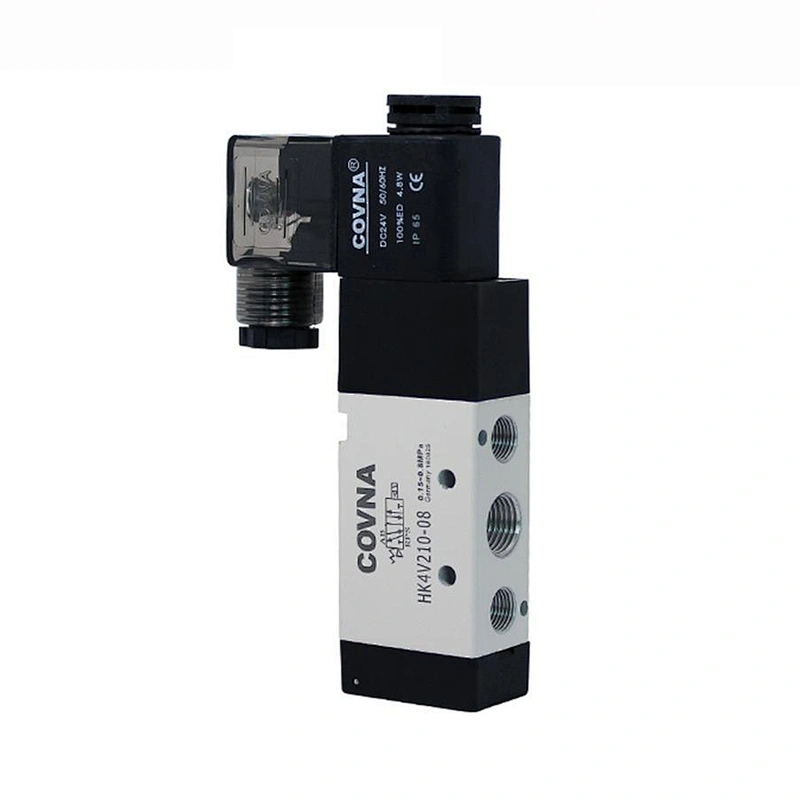

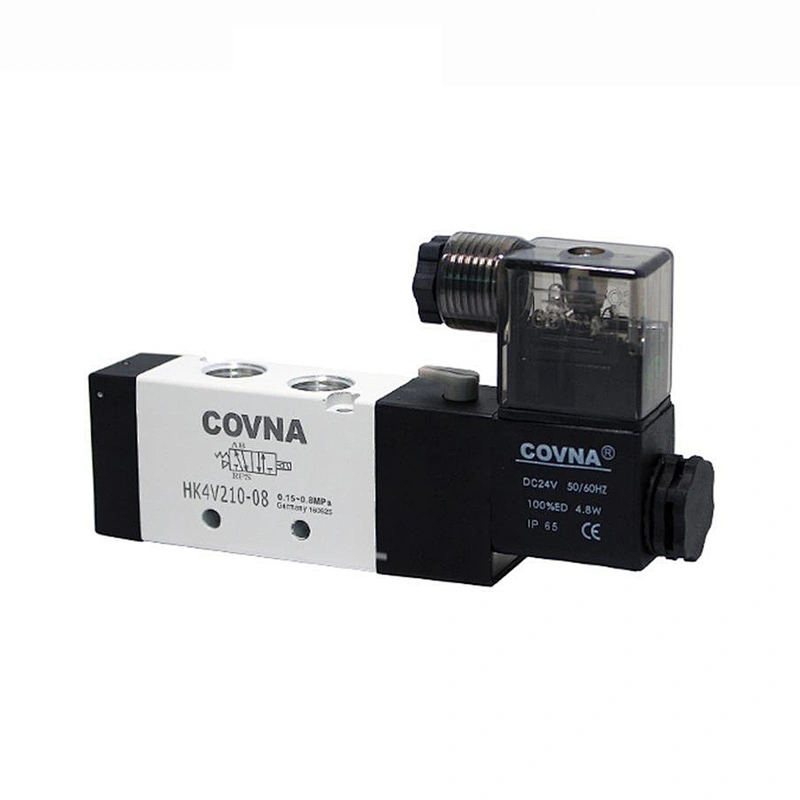

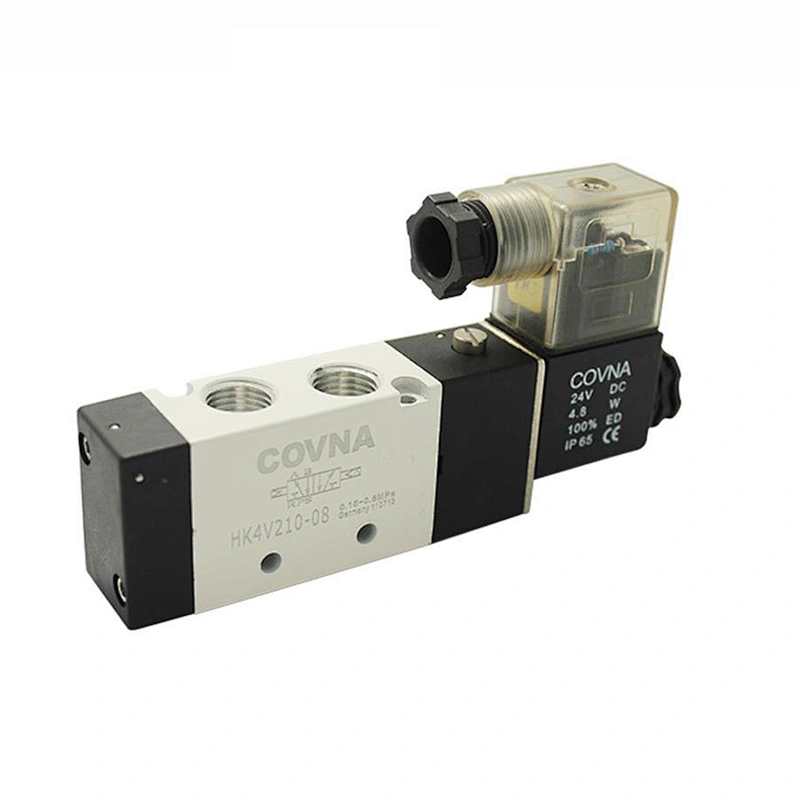

4V210 08 1/4 inch DC24V Single Coil Air Pneumatic Solenoid Valve

4V210 08 1/4 inch DC24V Single Coil Air Pneumatic Solenoid Valve

Model NO.: 4v210-08 solenoid valve
Price:: USD 5.00-8.00 / piece
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 10000 piece / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Application:General
Material:Alloy
Temperature of Media:Normal Temperature
Pressure:Low Pressure
Power:Solenoid
Structure:Control
Media:Air
Brand Name:COVNA
Model Number:4v210-08 solenoid valve
Port Size:1/4", DN08

Specifications

Model	4V210 08 1/4 inch DC24V Single Coil Air Pneumatic Solenoid Valve
Features	1. Manual override 2. Led indicator plug (IP65) 3. Fully encapsulated low wattage coil 4. This unit can also be mounted on a manifold of up to 12 units
Valve Type	2/5 Way
Effective Area	16mm²(Cv=0.89)
Port Size	Inlet=Outlet=Exhaust Port=G1/4"
Fluid	40μm Filtered Air
Operation	Internal Piloted
Operating Pressure	1.5~0.8kgf/cm²
Proof Pressure	10.5kgf/cm²
Ambient Temperature	5~60°C
Voltage Tolerance	±10%
Power Consumption	AC: 1.3W DC: 1.5W
Connector Protection	Class F, IP65
Connection	Cable, Lead Wire or DIN Connector
Switching Frequency	5 Cycles / Sec
Response Time	0.05 Sec

Internal Structure

#	Components	#	Components
1	Cross Slot Pan Screw	10	Spring
2	Back Cover	11	Mannual Ride Spindle
3	Spring	12	Terminal
4	Anomalous Seal	13	Coil
5	Valve Body	14	Coil Nut
6	Flat Ring	15	Connecting Part
7	Valve Spool	16	O Ring
8	Piston	17	Plunger
9	Y Ring	18	Piloted Valve Base

Start Order Now

Start Order Now

Dimension
